Product Description

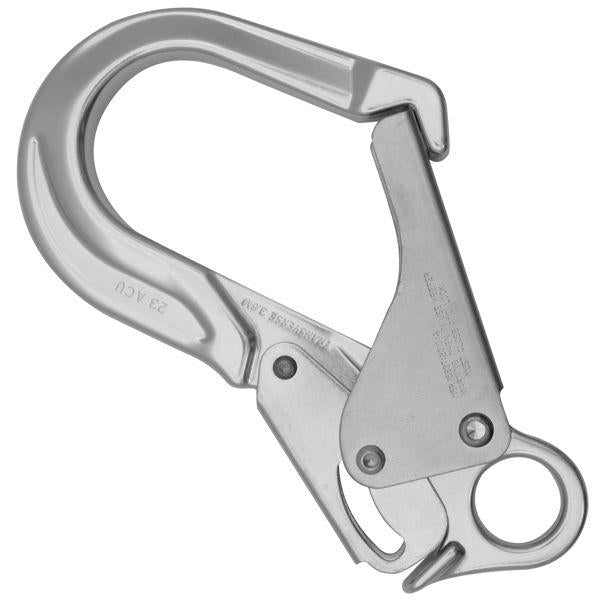

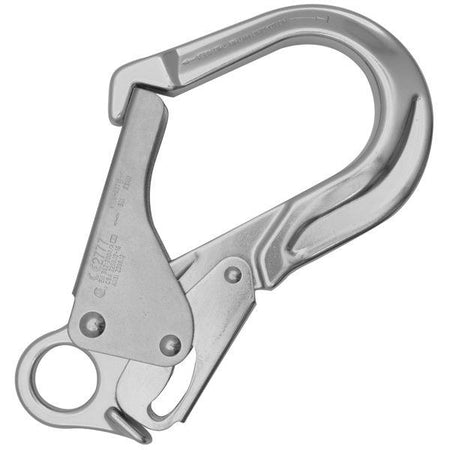

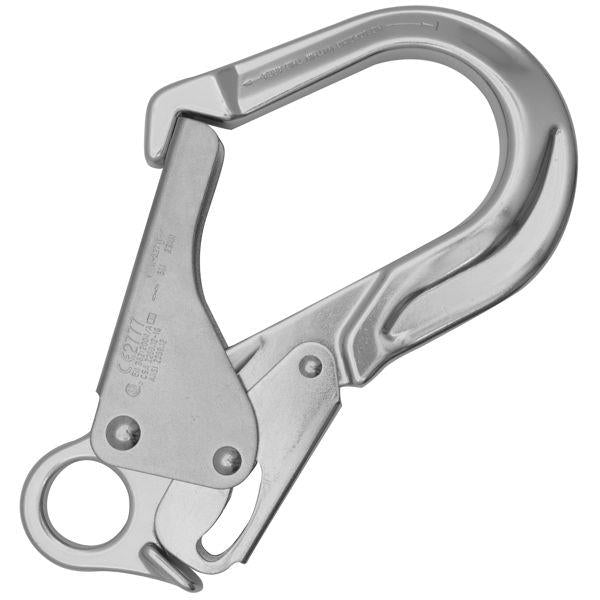

ALUMINUM CONNECTOR CERTIFIED ANSI FOR METAL STRUCTURES
This aluminum connector is certified according to EN 362/A, ANSI Z359.12, and CSA Z259.12-16 standards, ensuring high strength and performance, especially under mechanical stress on the gate. Ideal for connecting to scaffolding, platforms, towers, and cranes, it features a double-action locking mechanism and a large opening up to 62 mm
Standards - ANSI Z359.12, EN 362/A, CSA Z259.12-16
Material - Alu Alloy
Main Axis Load - 23kN
A. Length - 230 mm
B. Width - 155 mm
C. Body Diameter - /
D. Eyelet Diameter - 30 mm
E. Gate Opening Diameter - 62 mm
Sleeve - Double Gate
